2 Wheel Car Robot Chassis Kit in Pakistan
Specifications:
Voltage: DC 6V
Current: 120MA
Reduction rate: 48:1
RPM (With tire): 240
Tire Diameter: 66mm
Car Speed(M/minute): 48
Motor Weight (g): 50
Motor Size: 70mm*22mm*18mm
Noise: <65dB Tire Size
Tire Size Center hole: Long 5.3MM, 3.5MM
wide Diameter: 66MM
Width: 26MM
DC Gear Motor
No load speed (6V): 200RPM ±10%
No load current (6V): ≤200mA
No load speed (3V): 90RPM ±10%
No load current (3V): ≤150mA
Voltage: 3-6 V
The reduction ratio is 1:48
Description

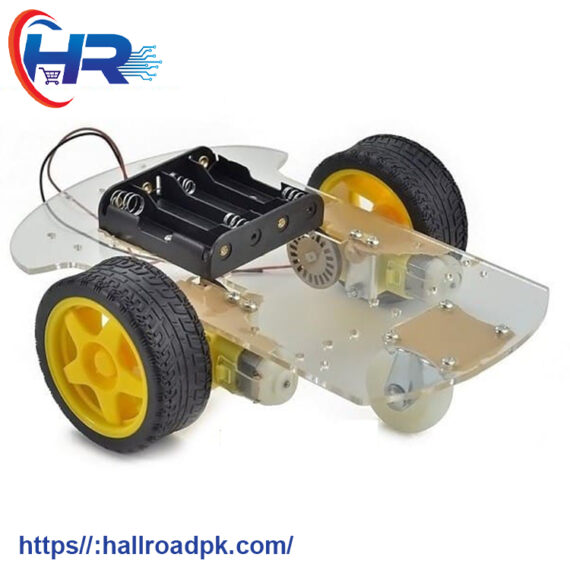

2 Wheel Car Robot Chassis Kit
2 wheel car robot chassis has with speed encoder. it has a mechanical structure and it is also very easy to install 2 Wheel Car. we can make a fantastic line follower robot and also a maze-solving robot 2 Wheel Car. This chassis has all the necessary space for all necessary electronics. by using this chassis with Arduino UNO R3 we can make an ideal DIY Project kit 2 Wheel Car.
Specifications 2 Wheel Car:
Voltages are DC 6V
The current value is 120MA
The reduction rate is 48:1
RPM (With tire) value is 240
Tire Diameter is 66mm
Car Speed(M/minute) is 48
Motor Weight is 50gram
Motor Size is almost 70mm*22mm*18mm
Noise is <65dB Tire Size
Tire Size Center hole is Long 5.3MM, 3.5MM
wide Diameter is almost 66MM
Width is 26MM
DC Gear Motor
No-load speed (6V) is 200RPM ±10%
No-load current (6V) is almost ≤200mA
No-load speed (3V) is almost 90RPM ±10%
No-load current (3V) is ≤150mA
Voltage is in between 3-6 V
The reduction ratio in the smart car is 1 ratio of 48
