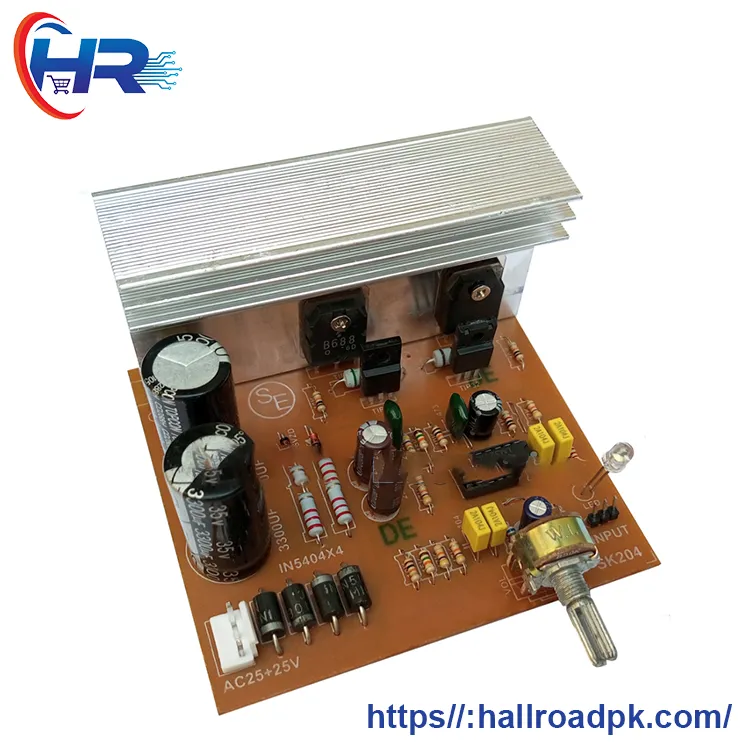

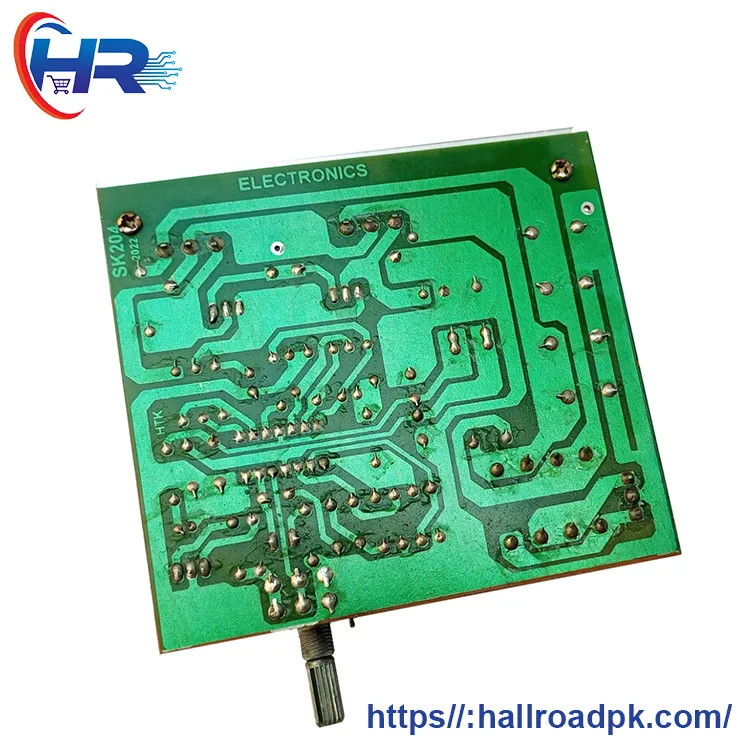

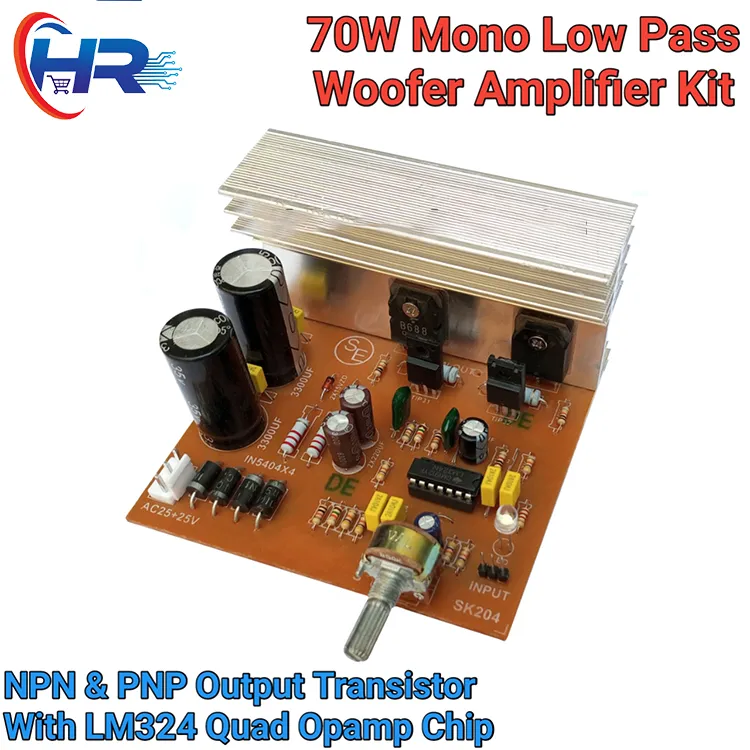

70W Mono Low Pass Woofer Amplifier Board only Bass Output Kit

Description

70W Mono Low Pass Woofer Amplifier Board: Experience Powerful Bass Performance

For audio enthusiasts and home theater builders seeking to elevate their low-frequency performance, the 70W Mono Low Pass Woofer Amplifier Board offers an ideal solution. This dedicated bass circuit is engineered to deliver robust and clear bass, enhancing your audio system’s performance and ensuring that every beat and note is felt as well as heard. Whether you’re upgrading your home theater system or building a custom audio setup, this amplifier board is designed to provide powerful and reliable bass output.

Overview of the 70W Mono Low Pass Woofer Amplifier Board

The 70W Mono Low Pass Woofer Amplifier Board is designed specifically for driving subwoofers and handling low-frequency audio signals. It utilizes a low pass filter to ensure that only the bass frequencies are amplified, making it an excellent choice for creating deep, impactful bass in your audio setup. With its 70W power rating, this amplifier board provides ample power to drive high-performance woofers and subwoofers, delivering a dynamic and immersive listening experience.

Key Features

1. Powerful Bass Performance: With a power rating of 70W, this mono amplifier board is capable of driving subwoofers and woofers with significant power. The dedicated bass circuit ensures that your audio system can produce deep, resonant bass that adds depth and richness to your music, movies, and other audio content.
2. Low Pass Filter Design: The low pass filter integrated into the amplifier board allows it to focus exclusively on low-frequency signals. This design ensures that the amplifier only processes and amplifies the bass frequencies, preventing distortion and maintaining the clarity of the lower end of the audio spectrum.
3. Mono Configuration: As a mono amplifier, this board is designed to drive a single channel of audio. This configuration is ideal for powering a subwoofer or woofer, providing a focused and powerful bass output that enhances your overall audio experience.
4. High Efficiency: The amplifier board is engineered for high efficiency, ensuring that it delivers maximum power to your woofer with minimal heat generation. This efficiency helps to maintain the longevity of the amplifier and the connected components.
5. Easy Integration: The 70W Mono Low Pass Woofer Amplifier Board is designed for easy integration into various audio systems. It features standard connectors and straightforward wiring, allowing you to connect it to your subwoofer and audio source with minimal effort.
6. Durable Construction: Built with high-quality components and materials, this amplifier board is designed to withstand the rigors of regular use. Its robust construction ensures reliable performance and long-term durability, making it a dependable choice for your audio setup.

Technical Specifications

• Power Rating: 70W
• Configuration: Mono
• Frequency Response: Low pass filter, designed for bass frequencies
• Efficiency: High efficiency for optimal power delivery
• Connector Type: Standard connectors for easy integration
• Build Quality: Durable construction for long-term use

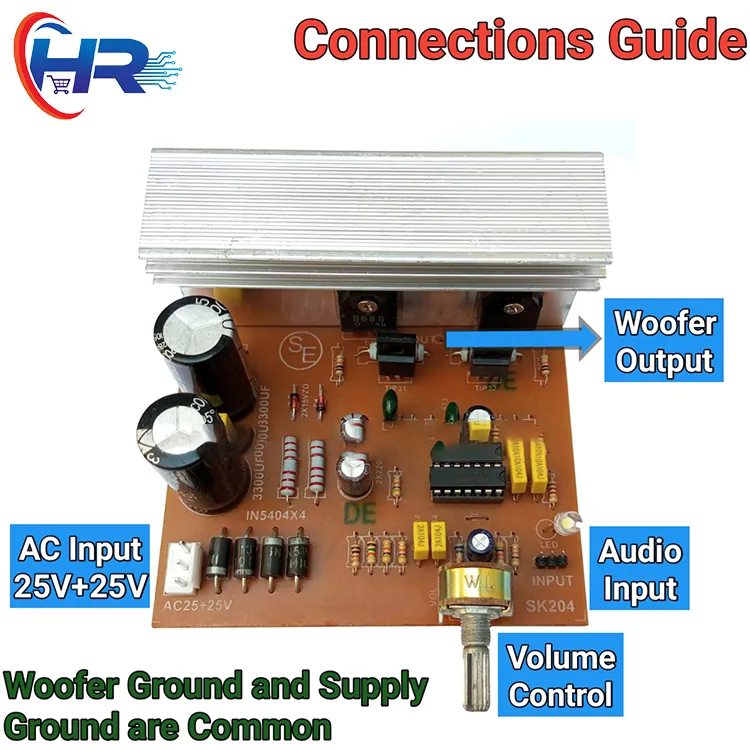

Installation and Setup

1. Connect the Power Supply: Begin by connecting the amplifier board to a suitable power supply. Ensure that the power supply meets the voltage and current requirements of the board to avoid damage and ensure proper operation.
2. Wire the Subwoofer: Connect your subwoofer to the amplifier board using the appropriate speaker wires. Ensure that the connections are secure and properly insulated to prevent any short circuits.
3. Connect to Audio Source: Connect the amplifier board to your audio source using the standard connectors provided. This connection allows the amplifier to receive the audio signal and process it for amplification.
4. Adjust Settings: Depending on the design of the amplifier board, you may have options to adjust settings such as gain or crossover frequency. Adjust these settings to fine-tune the bass performance to your preferences.
5. Power On and Test: Once everything is connected, power on the amplifier board and test the bass output. Play some audio content with prominent bass frequencies to ensure that the amplifier is functioning correctly and delivering the desired performance.

Why Choose the 70W Mono Low Pass Woofer Amplifier Board?

The 70W Mono Low Pass Woofer Amplifier Board is an excellent choice for anyone looking to enhance their audio system’s bass performance. Its powerful output, dedicated low pass filter design, and easy integration make it a versatile and effective solution for driving subwoofers and achieving deep, impactful bass. Whether you’re building a home theater system or upgrading an existing setup, this amplifier board provides the performance and reliability you need to enjoy superior audio quality.

The 70W Mono Low Pass Woofer Amplifier Board delivers exceptional bass performance and efficiency, making it a valuable addition to any audio setup. With its high power rating and specialized design, this amplifier board ensures that you experience rich, resonant bass that enhances your listening experience. Upgrade your audio system with the 70W Mono Low Pass Woofer Amplifier Board and enjoy powerful, clear bass that brings your audio content to life.
