Arduino RPM Rotational Speed Measuring Sensor in Pakistan

Description

Arduino RPM Rotational Speed Measuring Sensor in Pakistan

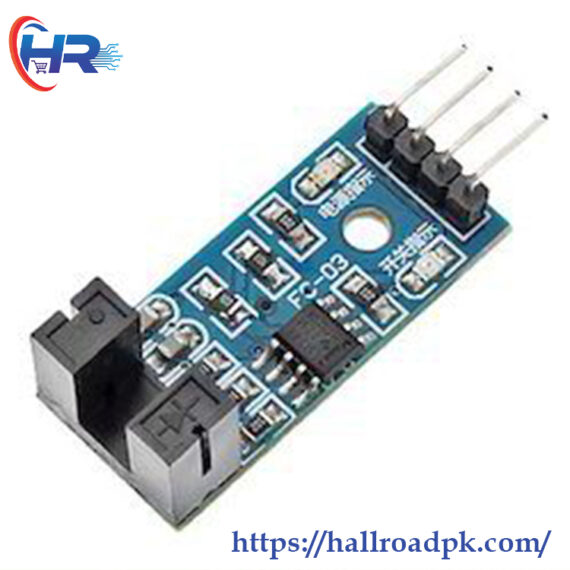

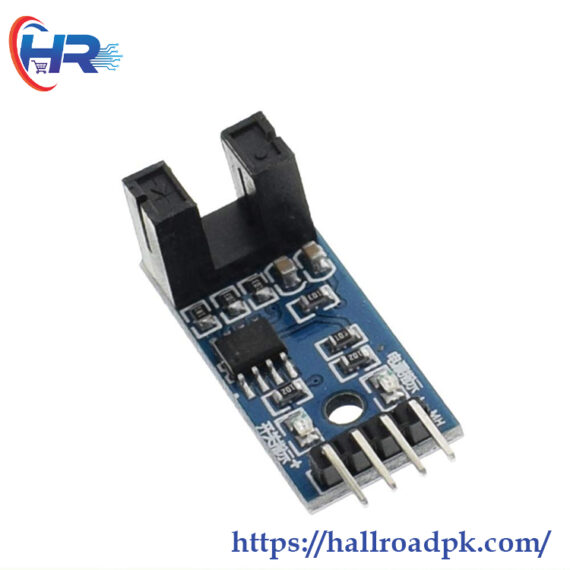

Digital Tachometer RPM, Speed or Pulse counting Sensor Module. Can be used with Arduino, Raspberry Pi, and other microcontroller boards.

Applications:

• RPM Sensing, Speed Sensing
• As Home and End limit sensors in CNC machines
• Position Detection Sensor
• Pulse counting

Features

• Output state indicator LED (LED ON means No obstruction)
• Power state indicator LED
• 3.3V and 5V logic level compatibility
• The 4-pin standard male header for interfacing with electronics
• A fixed hole for easy installation
• Built-in LM393 comparator for perfect non-intermediate logic low and high output
• The use of a quality coupler slot sensor

Technical Specifications

• Operating voltage: 3.3V-5V
•  Maxim Output Drive: 15mA
• Digital Output (DO) Output Low: When No Obstruction
• Digital Output (DO) Output High: When Obstructed
• Analog Output: Near 0V when no obstruction, between 0V and VCC when less obstruction, and Near VCC when full Obstruction
• Header Pitch: Standard 0.1 inch (2.54mm)
• Grove width: 5mm
• PCB Size: 3.2cm x 1.4cm
• Mounting Hole Diameter: 3.0mm

Pinouts

1. VCC
2. GND
3. DO (Digital Out)
4. AO (Analog Out)

Package Includes:

1x Digital Tachometer RPM or Speed Sensor Module – FZ0888
