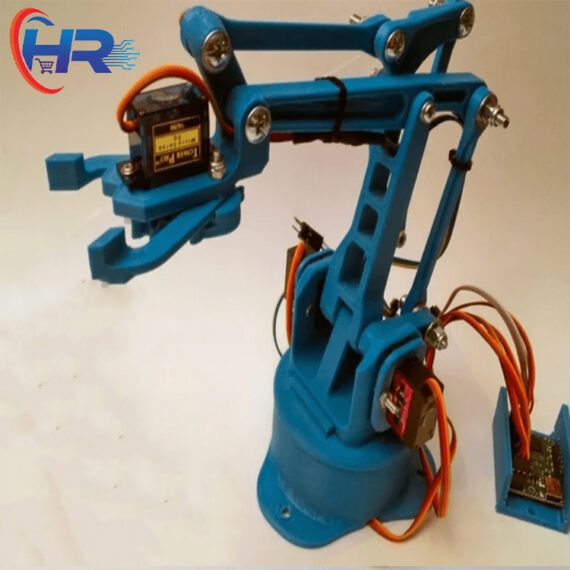

DIY 4DOF Robotic Arm EEZYbotARM MK2 IN Pakistan( Color May Very )

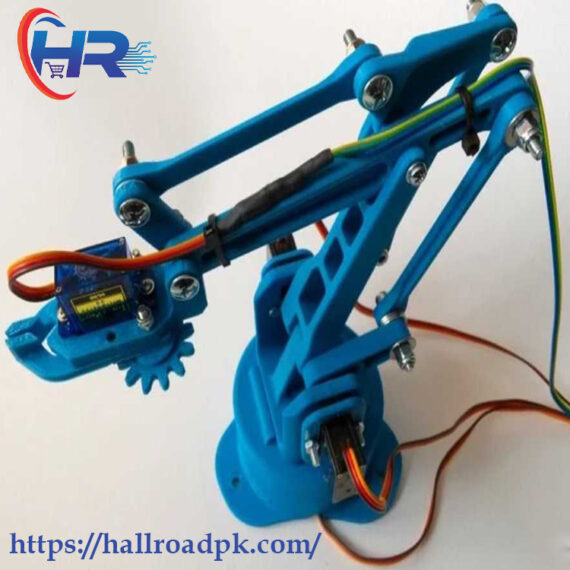

DIY 4DOF Robotic Arm EEZYbotARM MK2 IN Pakistan( Color May Very ) - Image 2
DIY 4DOF Robotic Arm EEZYbotARM MK2 IN Pakistan( Color May Very ) - Image 3

DIY 4DOF Robotic Arm EEZYbotARM MK2 IN Pakistan( Color May Very )

Add to wishlist
SKU: N/A

Note: The robotic Arm kit is fully Unassembled

  1.  3 Tower Pro MG90S Servos
  2.  1 SG90 servo (gripper) + 1 optional for the loop ramp
  3.  7 M4 self-locking nuts
  4. 15 M4 washers
  5. 11 M3 nuts
  6. 1 M3 x 30 screw
  7.  2 M3 washers
  8.  6 M3 x 12 hex screw
  9.  2 M3 x 12 TCEI screw
  10. 2 M4 x 20 TCEI screw
  11. 5 M4 x 20 round head hex recess screw
  12. 1 brass pipe 4 x 3 x 22 + n°1 4 x 3 x 26
  13. Full Printed Arm Kit
Add to wishlist
Compare

₨6,600.00

Compare

Description

4DOF Robotic Arm Pakistan This is a 3D-printed robotic arm

The intent was to design something “easy” and cheap to build with a good visual impact.

spent time looking around the web at some examples available that could be a good starting from, and between all I found the panoptic MeArm V4 project, especially for the simplicity and low cost of parts involved.
So I kept only the kinematics geometry and redesigned all parts including the gripper
