HC-SR501 HC SR501 PIR Human Motion Infrared Detector Sensor Module

Description

Instructions For Use:

1 induction module power about one minute after the initialization time, at this time the module will output 0-3 times a minute, a minute into the standby state.

2. Light and other interference should be avoided Directly close the surface of the lens module, so as not to introduce interference with the signal to produce malfunction; use the environment as far as possible to avoid

Free flow of wind, the wind will cause interference to the sensor.

3. Sensor module with dual element probe, the probe window is a rectangular, dual element (A yuan B yuan) in the longer direction at both ends, when the body from left to right

Or from right to left through the infrared spectrum to reach the dual time, distance difference, the greater the difference, the more sensitive induction, when the body from the front to the probe

Head or from top to bottom or from bottom to top direction, the dual element can not detect infrared spectral distance changes, no difference, so the sensor is insensitive or does not work; so the sensor should be installed so that the direction of the probe dual And the direction of human activity as much as possible parallel to ensure that the body has been through

Probe dual element induction. To increase the sensing angle range, this module uses a circular lens, which also makes the probe’s four sides sensitive, but the left and right sides are still

However, compared with the upper and lower direction of the two induction ranges, sensitivity, and installation must still be according to the above requirements.

Instructions For The USER:

1. the DC voltage must meet our requirements, too high and too low will affect the performance of the module, but also requires the power supply must be a good regulator filter, such as computer USB power, mobile phone charger power supply, the old 9V stacked battery Are unable to meet the module work requirements, it is recommended that customers use the power transformer and the regulator through the three-terminal voltage regulator and then through the 220UF and 0.1UF capacitor filter power supply.

2. Although the human body is not in front of the module, the human body from the module is too close to the module can also be caused by the sensor output, as well as debugging the human body not touching the circuit part will also affect the module work, A more scientific approach is to output a LED or a multimeter, the module covered with a newspaper, people leave the room, so 2 minutes to see whether the module has been or have output?

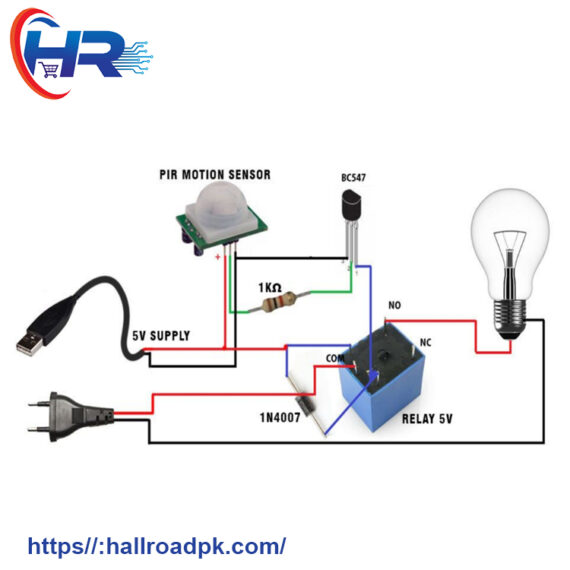

3. the module does not take the load to work properly, connected to the load after the work of chaos, one reason is that the power capacity is very small load power consumption, the load is caused by voltage fluctuations caused by the module malfunction, the other reason is the load The power will have interference in the work, such as relays or electromagnets and another inductive load will produce a reverse electromotive force, 315M emission plate will have electromagnetic radiation and other work will affect the module. The solution is as follows: A, the power part of the inductor filter. B, using the load and the module using different voltage methods, such as the load using 24V operating voltage, and the module using 12V operating voltage, during which the use of three-terminal regulator isolation. C: Use a larger capacity power supply.

4. the human body sensor module can only work indoors and the work environment should avoid the sun, a strong direct light exposure, if the work environment has a strong RF interference, you can use shielding measures. In case of strong air interference, close the doors and windows or prevent convection. The induction area to avoid facing the heating appliances and objects as well as easy-to-wind debris and clothing.

5. the human body sensor module is recommended to be installed in a sealed box, otherwise there may have been an output signal.

6. if the body sensor module detection angle is less than 90 degrees, you can use opaque adhesive tape to cut off the lens or cut the lens to achieve.

7. the human body sensor module with dual element probe, the body\’s hands and feet, and head movement direction and the sensitivity of the sensor are closely linked, and the infrared module determines the characteristics of the sensor that can not accurately control the distance.

8. the module of the probe (PIR) can be mounted on the other side of the circuit board. The probe can also be extended with a two-core shielded cable, the length should be less than 20 cm as well.
