MACH3 USB interface board 5 Axis BL-UsbMach-V2.0 MACH3 CNC Board

4,500.00

Delivery & Return

Estimated Delivery Times  1–2 business days within Punjab, and 3–6 business days for other provinces across Pakistan.

Returns must be requested within 3 days of receiving the product. No return or refund will be accepted if the circuit print is damaged or the circuit board is physically broken, burnt, or tampered with in any way

Description

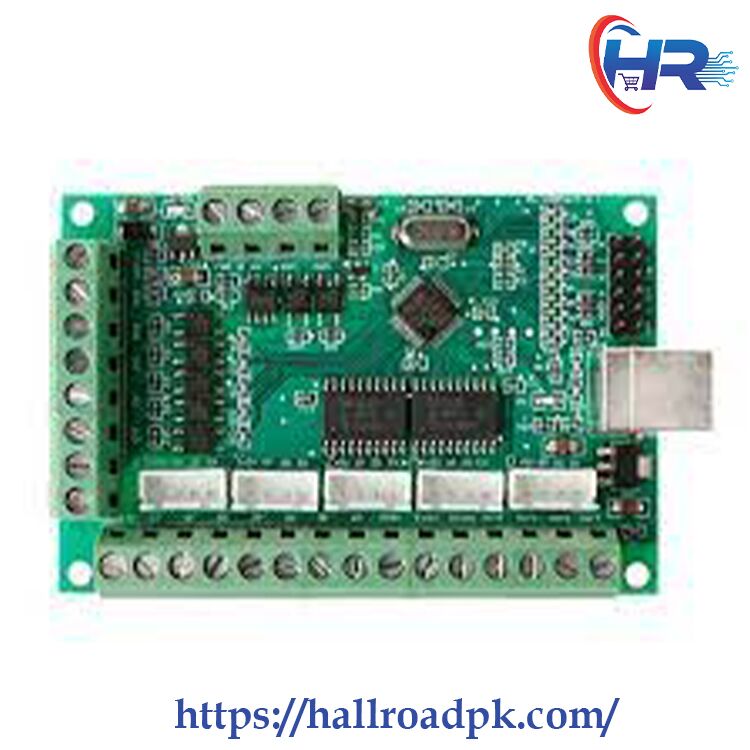

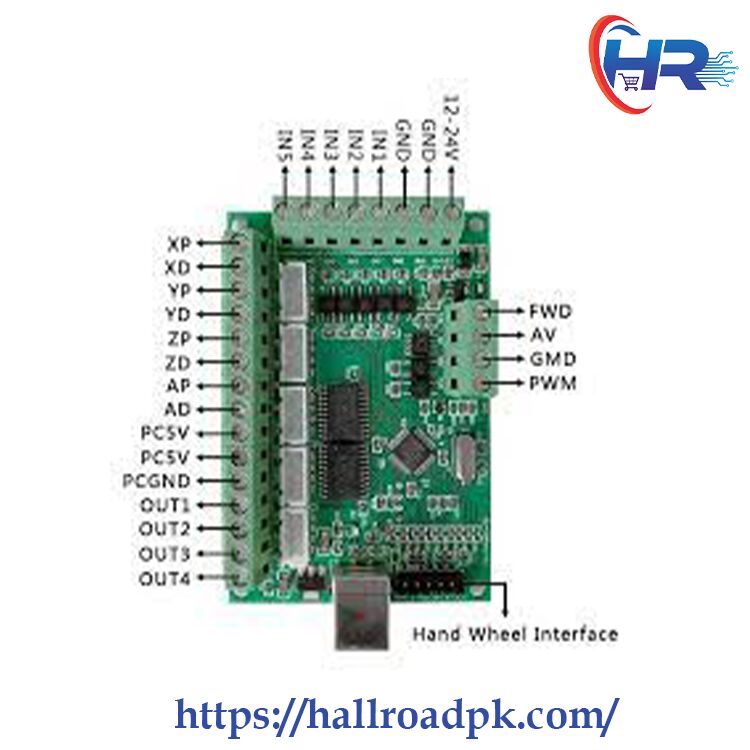

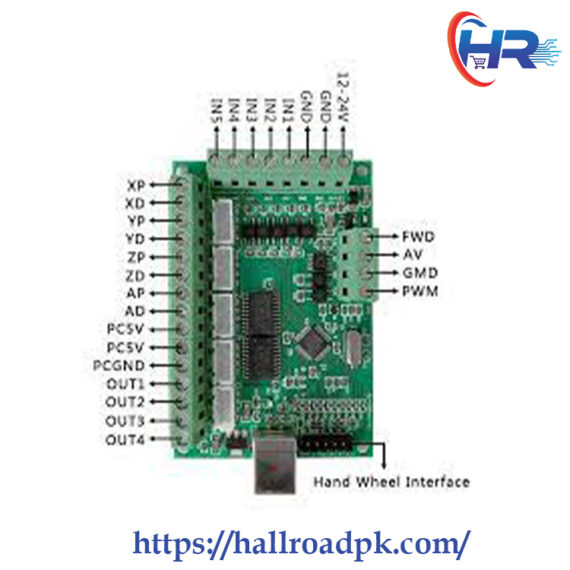

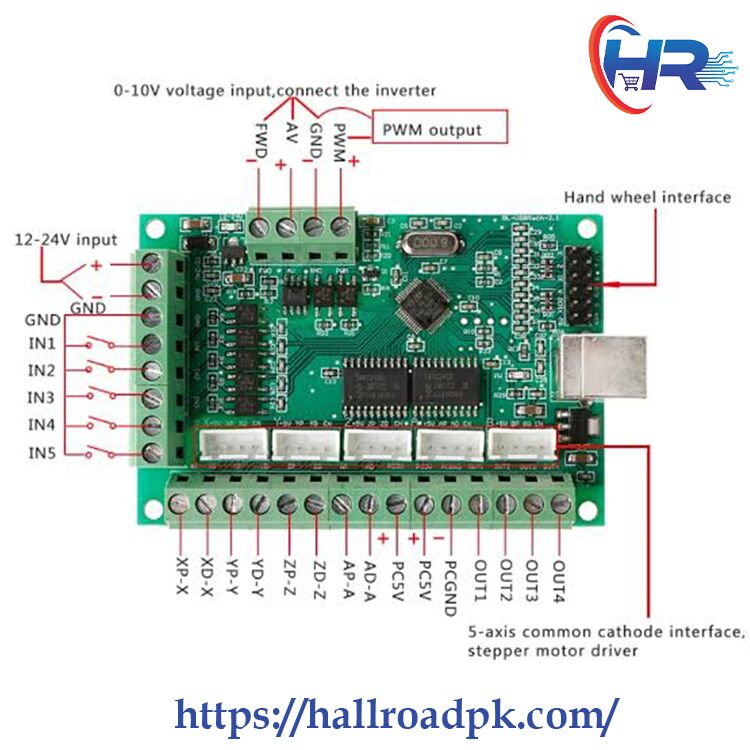

Specifications:

  • Part Number: BL-USBMach V2.0
  • No of Axis: 5  (you can connect 5 stepper motor drives or servo drives)
  • Maximum step-pulse frequency: 100KHz  (suitable for smooth servo or stepper motion)
  • Automatic probe tool Support: Yes
  • Emergency input: Yes
  • Limit switches: Yes (5 general-purpose inputs, you can connect the limit switch, estop switch, probe switch, back to zero, and another device)
  • Electronic handwheel Support: Yes
  • Optical Isolation between USB Side Control and External inputs: Yes
  • External Voltage: 12V/24V
  • Spindle Control Output: Yes (0-10V output port) with Spindle Direction (FWD) output
  • Isolated Outputs: 4 general-purpose isolated relay drive output interfaces (can drive four relays for controlling the spindle starts, forward rotating and reverse rotating, pumps, and another device)
  • Power Status LED: 1 Status LED (indicate Power status of the controller board)
  • Size: 9x6cm / 3.54×2.36in
  • Tested with the following Operating Systems: Windows XP (direct)
  • Windows 7 64bit /32Bit (direct)
  • Windows 10 (Indirect using Windows XP on VMware

Packing Include :

1X MACH3 USB interface board 5 Axis BL-UsbMach-V2.0 MACH3 CNC Board

Setup Instructions:

  • Step 1: Install Mach3: If you already have a Mach3 Installed, skip this step.
  • Step 2: Download the USB Motion Driver BL-UsbMach-V22.dll and copy and paste the file into your Mach3 Plugins folder Example: “C:/Users/ProgramFiles/Mach3/Plugins”
  • Step 3: Make sure your board is connected to the PC via a USB cable. It should automatically recognize the USB device.
  • Step 4: Open Mach3 and you should be prompted to select a driver. Select the “USBMach V2.0” and check “Don’t ask me again”. This will allow your board to communicate with Mach3.
  • Step 5: Download the XML Mach3 Config File above by right-clicking on the link and selecting “save as”. Save the Mach3Mill.xml file in your Mach3 root folder.
