DSN-VC288 volt amp Meter DC 100V 10A Voltmeter Ammeter in Pakistan

Description

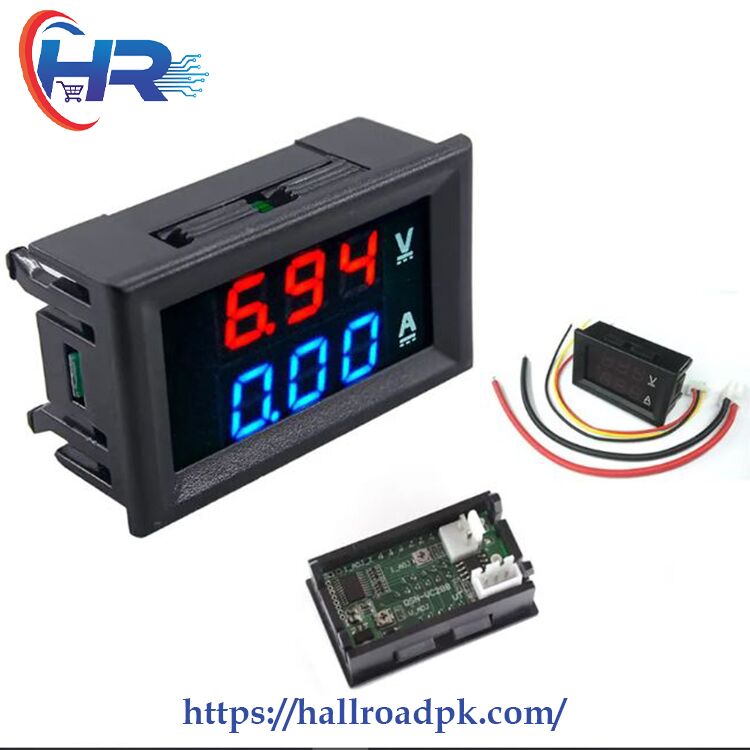

DSN- VC288 Panel Mount volt amp Meter DC 100V 10A Voltmeter Ammeter

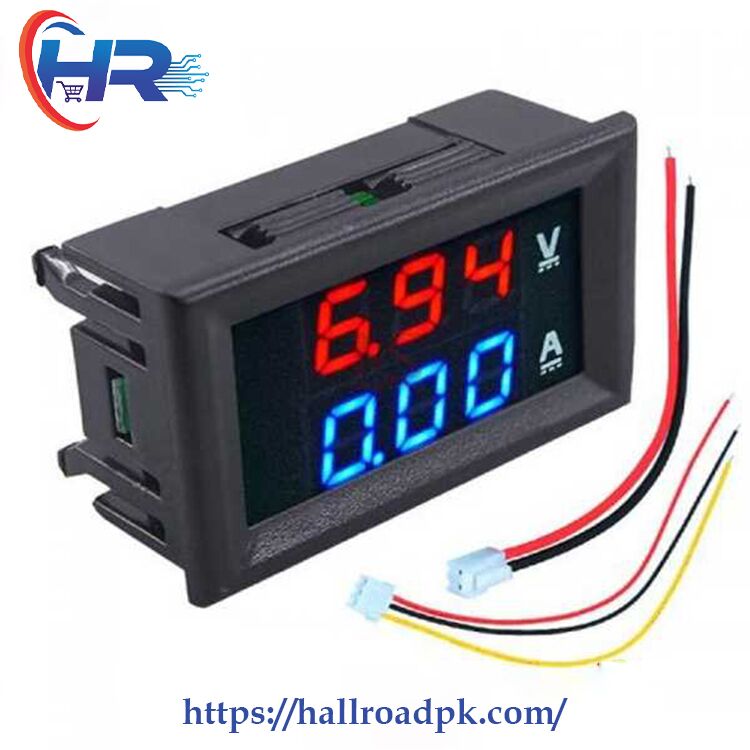

This DC 100V 10A volt amp Meter consists of 0.28 inch 5 wire red LED. With 100V DC can be measured by this meter with 0.1V resolution. This volt ammeter contains 2 wire harnesses. 2 poles with RED and BLACK lead are used to power the meters. this meter is portable and small in size. DSN-VC288 DC 100V 10A volt amp Meter shows volt and ammeter simultaneously on the same screen.

Its operating voltages are 6 to 30 volts.  This is a separate power supply isolated from the source, it is possible to use the same supply but it seems to affect the amp meter reading. 3 wire harnesses were used for the ground. This 3^rd wire harness connects directly to the battery or supply ground of the load. Get all types of Meters, Sensors, Modules, and frames from Pakistan’s best online store Hallroadpk.com.

Specifications of DSN-VC288 DC 100V 10A volt amp Meter:

• DSN-VC288 DC 100V 10A voltage measurement range is 0.0 to 100V.
• Its current test range is 0 to 999mA, with 0 to 10A.
• DC 4 to 30V is its power supply range.
• Its voltage error is +-o.1%.
• Its current error is +-1%.
• Its working current value is <20mA.
• Its refresh rate is almost 300mS once.
• It can display a double three-digit 0.28-inch LED digital tube.
• Its display colors is RED and BLUE.

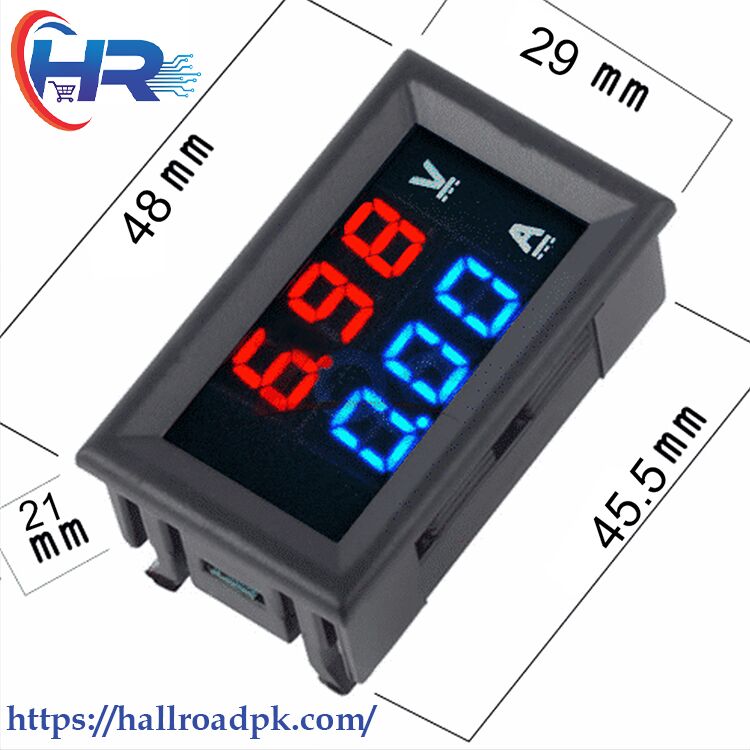

• Its size is 48 x 27 x 22mm.
• Its working temperature is -10 to 65 degrees centigrade.
