PAM8610 15W + 15W Two Channel Stereo Class D Amplifier Board
PAM8610 15W + 15W Two Channel Stereo Class D Amplifier Board - Image 2
PAM8610 15W + 15W Two Channel Stereo Class D Amplifier Board - Image 3
PAM8610 15W + 15W Two Channel Stereo Class D Amplifier Board - Image 4
PAM8610 15W + 15W Two Channel Stereo Class D Amplifier Board - Image 5

PAM8610 15W + 15W Two Channel Stereo Class D Amplifier Board

Add to wishlist
SKU: N/A

1. Supply voltage: DC 7V-15V
2. Output power: 10w + 10w (8 load)
3. Efficiency: 90%
4. Shutdown Current: 4uA
5. Quiescent current; 20mA
6. SNR: 86%
7. Total harmonic distortion: 5W / 1KHz / 8 —- 0.1%
8. Frequency range: 20Hz-20KHz
9. Input impedance: 15K
10. Output Impedance: 4-8

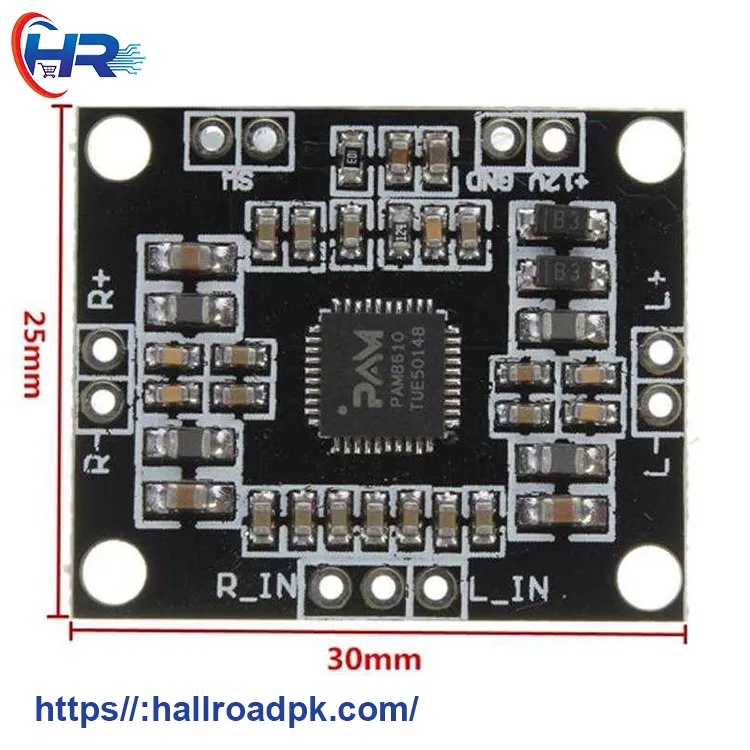

11. Amplifier board size: 30mm * 25mm * 2.5mm
1. The power supply voltage limit is 16.5V, do not use more than this voltage.
2. The power supply is recommended for a 12v, 3A power supply filter better
3. 4-8 inch stereo speakers recommended.
4. Do not short-circuit the audio output to each other or short to ground.
5. Carefully check before electricity, and ensure wiring is correct before electricity.

Add to wishlist
Compare

₨295.00

Compare

Description

Elevate Your Audio Experience with the PAM8610 Amplifier Board 15W + 15W Two Channel Stereo Class D Amplifier Circuit

In the world of audio amplification, the PAM8610 amplifier board stands out as an exceptional choice for both DIY enthusiasts and professional audio users. This 15W + 15W two-channel stereo Class D amplifier board combines high efficiency, low distortion, and superior sound quality, making it perfect for a wide range of audio applications. Whether you’re designing a custom home audio system or building a portable speaker, this high-efficiency audio amplifier delivers outstanding performance.

Key Features of the PAM8610 15W + 15W Two Channel Stereo Class D Amplifier Board

  1. High-Efficiency Audio Amplifier: The PAM8610 amplifier board boasts an impressive efficiency of 90%, thanks to its Class D design. This high efficiency translates into more power with less heat generation, making the amplifier board ideal for both energy-conscious users and high-performance audio systems.
  2. Low-Distortion Amplifier: This amplifier board is engineered to minimize distortion, ensuring that your audio output remains clean and true to the original source. With a total harmonic distortion of just 0.1% at 5W / 1KHz / 8 ohms, the PAM8610 provides clear and accurate sound reproduction.
  3. Two Channel Amplifier: The PAM8610 is a two-channel amplifier, designed to drive both left and right stereo channels independently. This configuration is crucial for creating a balanced and immersive audio experience, whether you’re listening to music, watching movies, or playing games.
  4. DIY Amplifier Board: For DIY audio enthusiasts, the PAM8610 amplifier board offers an excellent opportunity to build a custom audio amplifier. The board is user-friendly and easy to integrate into various audio projects, providing flexibility and high performance for your designs.
  5. Home Audio Amplifier: Upgrade your home audio system with the PAM8610 amplifier board. Its high efficiency and low distortion make it well-suited for driving home speakers, delivering powerful and clear sound. The 15W + 15W power output is ideal for most home audio setups, providing the performance you need without excessive bulk.
  6. Portable Speaker Amplifier: The compact and efficient design of the PAM8610 makes it a great choice for portable speaker applications. Its Class D architecture ensures strong performance while maintaining a small footprint, making it easy to integrate into portable speaker designs.
  7. Stereo Audio Amplifier: As a stereo audio amplifier, the PAM8610 board enhances your listening experience with rich, immersive sound. The two-channel configuration creates a stereo soundstage that brings audio content to life, whether you’re enjoying music, movies, or other audio sources.

Technical Specifications

  • Supply Voltage: DC 7V-15V (Note: The power supply voltage limit is 16.5V; do not exceed this limit.)
  • Output Power: 10W + 10W (8Ω load)
  • Efficiency: 90%
  • Shutdown Current: 4µA
  • Quiescent Current: 20mA
  • Signal-to-Noise Ratio (SNR): 86%
  • Total Harmonic Distortion: 0.1% at 5W / 1KHz / 8Ω
  • Frequency Range: 20Hz-20KHz
  • Input Impedance: 15KΩ
  • Output Impedance: 4-8Ω
  • Amplifier Board Size: 30mm x 25mm x 2.5mm

Usage Recommendations

  1. Power Supply: It is recommended to use a 12V, 3A power supply for optimal performance and better filtering. Avoid exceeding the power supply voltage limit of 16.5V.
  2. Speaker Compatibility: The PAM8610 amplifier board is suitable for use with 4-8Ω stereo speakers. Ensure that your speakers match this impedance for optimal performance.
  3. Precautions: Avoid short-circuiting the audio output to each other or to the ground. Carefully check all wiring connections before powering on the amplifier to ensure proper operation and prevent damage.

Why Choose the PAM8610 15W + 15W Two Channel Stereo Class D Amplifier Board?

The PAM8610 amplifier board offers several advantages over traditional amplifier designs. Its high efficiency, low distortion, and two-channel configuration provide excellent audio performance for a variety of applications. Whether you’re a DIY enthusiast looking to build your own audio amplifier or a professional seeking a reliable and efficient solution for your home audio system, the PAM8610 is an outstanding choice.
