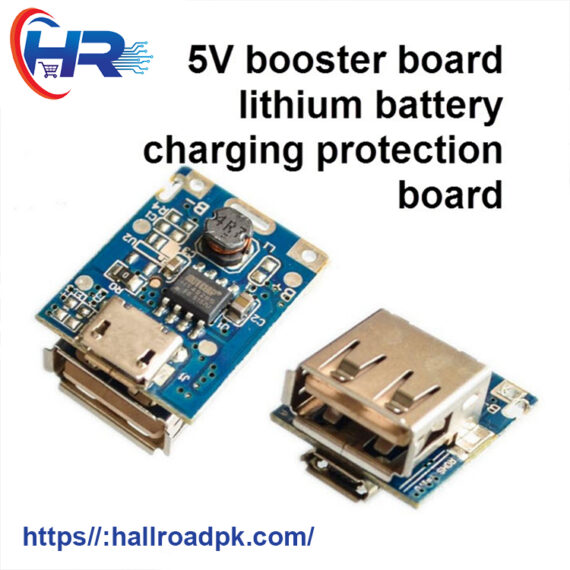

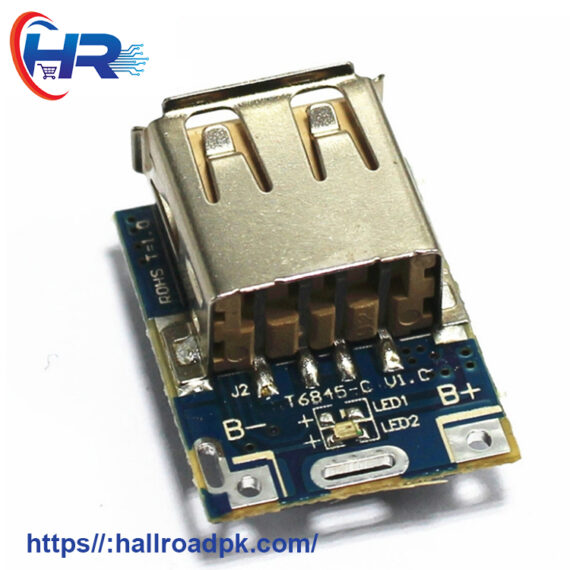

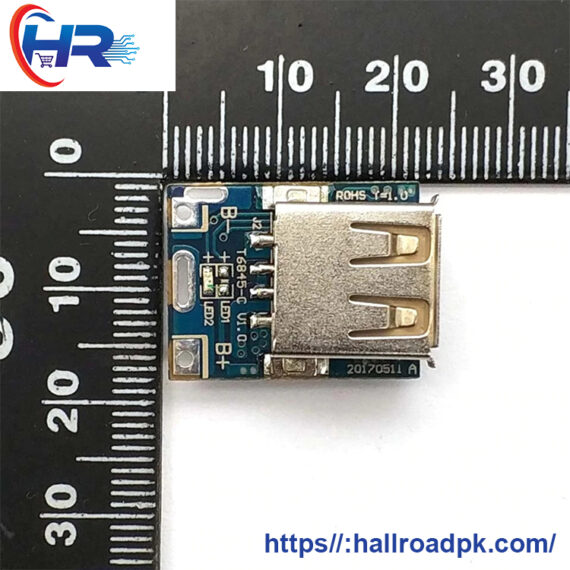

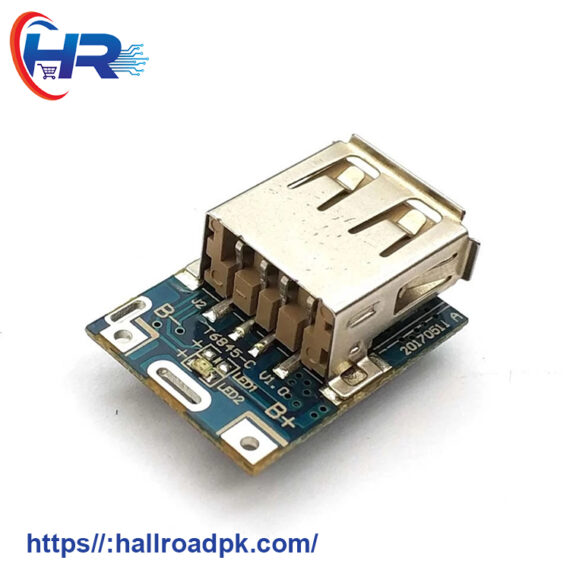

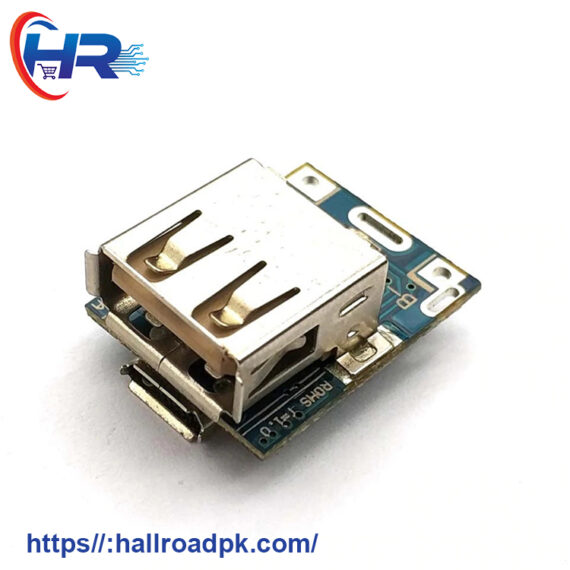

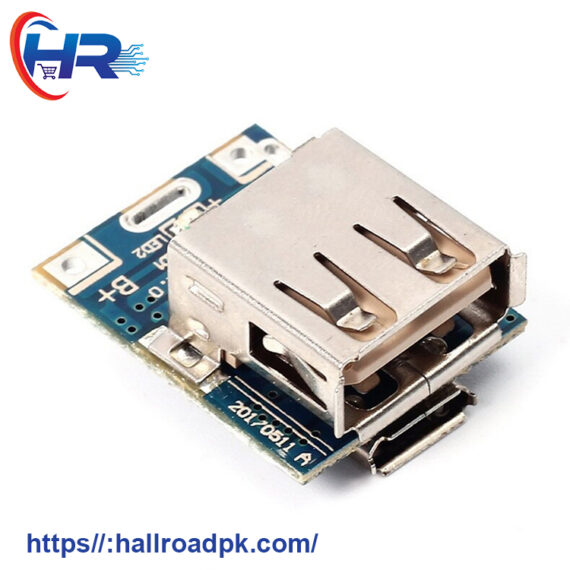

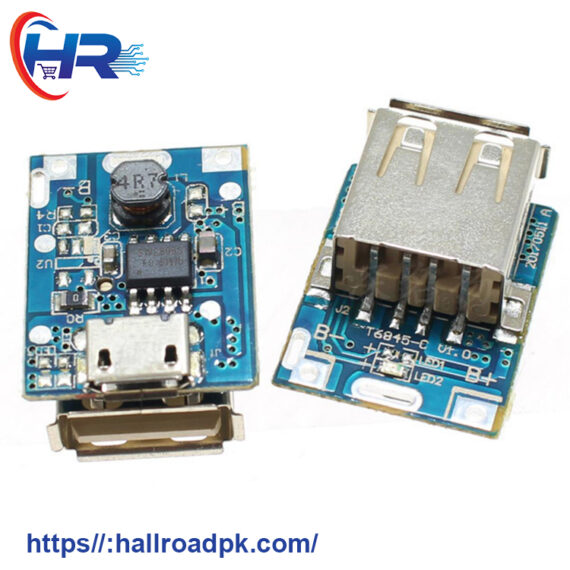

Power Bank Module Mini 5V 1A Single Port Circuit
- Built-in charging and discharging power MOS
- Input voltage: 3.7V~5.5V
- Charging current: up to 1A
- Output current: up to 1A
- Output voltage: 5V
- BAT discharge termination voltage: 2.9V
- Preset 4.2V charging voltage with an accuracy of ±1%
- Discharge efficiency: 85% (input 3.7V, output 5V/1A)
- Maximum 8uA standby current
- Integrated charge management and discharge management
- Intelligent temperature control and over temperature protection
- Integrated output overvoltage protection, short circuit protection, heavy duty protection
- Integrated overcharge and overdischarge protection
- Supports turbulence mode and zero voltage charging
Description
Description
1.Input Voltage:3.7V~5.5V
2.Charging Current:1A(max)
3.Output Current:1A(max)
4.Output voltage:5V
5.BAT Discharging Stop Voltage:2.9V
6.Discharging Efficiency:85%(input 3.7V output 5V/1A)
Features:
1.Charging and discharging indication
2.Internally installed charging and discharging power MOS
3.Preset 4.2V charging voltage, precision ±1%
4.Max 8uA standby current
5.Integration charging management and discharging management
6.Intelligent temperature control and over temperature protection
7.Integration output over voltage protection,short circuit protection,overload protection
8.Integration overcharging and over discharging protection
9.Support trickle mode and zero voltage charging
When charging :red light flashing
Full charged :red light light for a long time
Package Included
1 Pcs 5V Step-Up Power Module
